Construction tolerance surveys keep a large warehouse from drifting out of the square as it rises. These buildings run on long grid lines, sometimes hundreds of feet from one column row to the next, and small layout errors grow across that distance. A survey checks the work against the design at each stage, catching problems while they can still be fixed. Precision early saves expensive corrections later.

Why Small Layout Errors Grow Across Long Building Dimensions

A tiny error looks harmless until it travels. On a short wall, a misplacement of an eighth of an inch barely matters, but a warehouse grid can run the length of a football field. Over that distance, small slips compound into a real gap.

Several things feed the growth. Repeated instrument setups, temperature changes and the way grid lines transfer from one point to the next all add their bit. Each handoff carries a chance to drift.

The result shows up at the far corners. A grid that starts clean can end up out of square by the time it reaches the last column line. Tolerance surveys exist to catch that drift before the steel goes up.

Establishing Independent Checks for Structural Grid Control

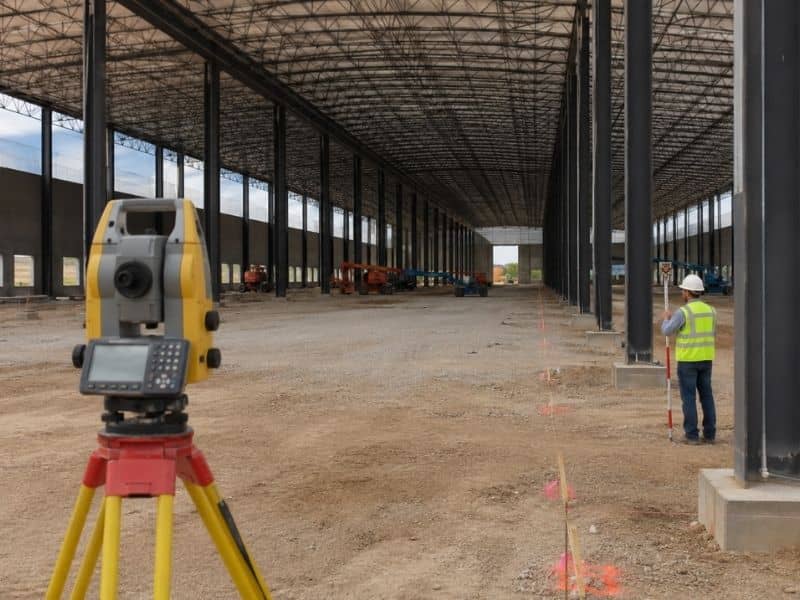

Good grid control leans on more than one line of measurement. A crew sets baselines and redundant grid points, then checks them against each other. When two independent measurements agree, the grid earns trust.

Diagonal checks are a simple, powerful tool. Measuring corner to corner across a rectangle confirms whether it is truly square, since the diagonals of a true rectangle match. A mismatch flags a problem before anyone builds on it.

Keeping layout and verification separate matters. The crew that stakes the grid should not be the only one to check it, since the same error can hide in both passes. An independent look catches what the first one missed.

Verifying Anchor Bolts and Embedded Components Before Steel Erection

Anchor bolts hold the building’s steel, and they have to sit exactly right. A crew checks each bolt group for position, elevation and projection before the steel crew arrives. A bolt off by a small margin can stop an entire column from setting.

The timing of the check is everything. Catching a misplaced bolt while the concrete is fresh, or before erection begins, leaves room to fix it. Finding the same error with a column hanging from a crane means a costly delay.

The survey reports what it finds plainly. It lists the measured positions against the design so the contractor can act. Correcting a bolt pattern early keeps the steel schedule on track.

Monitoring Column Alignment and Slab Elevations During Construction

As the building rises, the survey keeps watching. Crews check that columns stand plumb and that the grid holds its shape as steel goes in. A lean caught early is a small fix, while one found late can ripple through the structure.

Slab elevations get their own attention. The survey supplies the data behind floor-flatness checks, which matter in a warehouse where forklifts and tall racking demand a level floor. Benchmark checks tie these elevations back to the project’s control.

Each stage carries its own limits. What counts as acceptable during framing differs from the finished-floor standard. The survey measures against the right tolerance for the moment.

Reporting Deviations Without Misstating Design Acceptance

A tolerance survey reports facts, not verdicts. It records the measured offsets and compares them to the specified tolerances, then hands that to the people who decide. The surveyor measures, but acceptance belongs to others.

Clarity protects everyone. A report that blends measurement with judgment can imply a wall passed or failed when that call isn’t the surveyor’s to make. Stating the numbers and the specification, and stopping there, keeps the roles clean.

Measurement uncertainty belongs in the report too. Every measurement carries a small margin, and noting it keeps a borderline reading from being treated as exact. The engineer and contractor weigh that margin when they judge acceptance.
