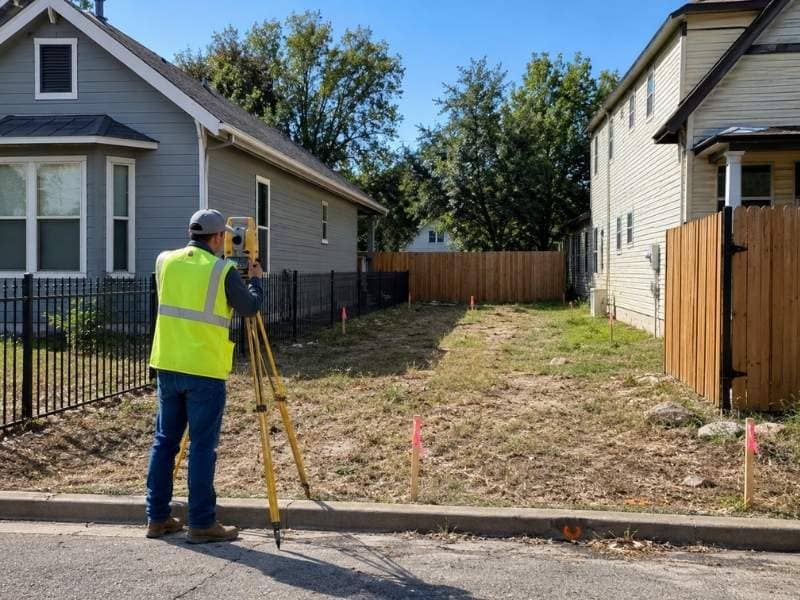

An infill lot survey earns its keep when the houses next door are already tight against the setbacks. Building on a small city lot means every foot counts, and the neighbors leave little room to spare. If you guess at the boundary or lean on a fence line, you can lose part of your buildable area fast.

A survey pins down the true lot and the real limits before your architect draws a thing. That head start keeps your new home from running into a clearance problem later. It also protects you from a costly redesign after the plans are done. On a squeezed lot, knowing the facts early is everything.

Confirm the Legal Lot, Not the Neighbor’s Fence

It is tempting to treat the neighbor’s wall or fence as your boundary. Those features often sit off the real line, though, sometimes by a surprising amount. Driveways and landscaping can mislead you in the same way. A surveyor locates the actual legal boundary and the permitted building area.

That way your design starts from fact, not from whatever the last owner assumed. Fences move over the decades, and few of them mark the true line accurately. Building a fence can push your home into a setback without any warning. The survey removes that risk entirely from the start.

You design from a boundary you can trust completely. On a tight lot, that trust is worth more than a few extra inches of guesswork.

Measure the Homes on Both Sides

On a tight lot, your neighbors shape your options more than you might expect. The survey documents your property along with the relevant improvements next door. That shows the design team where clearances get tight and where conflicts might appear. Fire separation, side-yard access, and drainage all depend on those exact distances.

A window or a wall too close to the neighbor can trigger a code issue. Seeing these distances early helps the architect plan around the squeeze. It also helps you set honest expectations about the home’s real size. Better to learn the true clearances now than during framing.

The survey gives you that early warning while changes are still cheap. Knowing your neighbors’ walls keeps your design realistic from day one.

Reconcile Old Setbacks With Current Rules

Setbacks are not always what the old plat says. Sometimes they even disagree with one another, which creates real confusion. A survey brings these sources together so the team knows which limits truly apply. Each can set a different limit:

• Plats
• Deeds
• Zoning rules
• Building lines
• Recorded restrictions

Sorting this out first keeps the design from crossing a line no one noticed. An old deed restriction can be stricter than current zoning, for example. If you miss it, your permit could stall late in review, right when it hurts most.

The surveyor checks all of these rules against your lot carefully. That way your design respects every limit at once, from the start. One overlooked rule can undo months of planning, so this step matters.

Map Access, Utilities, and Drainage in What Remains

The buildable area shrinks once you account for everything on the lot. Easements, service connections, swales, and shared access can all eat into space you were counting on. The survey maps these features inside the remaining footprint, so nothing hides from view. That gives you an honest view of where the home can actually sit.

A utility easement running across the back can rule out part of your plan. Shared access with a neighbor can limit your driveway too. Better to learn the real space now than after the plans are finished and paid for.

The survey lays it all out clearly on one drawing. Then your design fits reality from the very first sketch. On an infill lot, that honest footprint is the whole game.

Build the Survey Into the Design

Accurate site data pays off before you ever submit for a permit. With it, architects and builders can place the home, driveway, foundation, and outdoor features with confidence. Fewer surprises mean fewer redesigns and less lost time on a tight schedule. The plan fits the lot the first time instead of the third.

That saves money and keeps the project on track from the start. It also makes permit review smoother, since your plan already respects every limit. A reviewer who sees careful survey work tends to trust the whole submittal.

So the survey is not just a formality to check off. It is the foundation of a smooth build on a hard lot. Skipping it usually costs far more than ordering it ever would.

Frequently Asked Questions

Can an old fence be used as the boundary for an infill design?

It is risky to treat a fence as the boundary. A fence can serve as field evidence, and a surveyor may consider it in their analysis. Still, it should not replace a real boundary determination by a licensed professional. Fences drift over the years, so the line they mark is often off by a foot or more.

Why show neighboring improvements on the survey?

Nearby structures affect more than the view. They shape access, fire separation, drainage planning, and construction logistics on a tight lot. Mapping them helps the team spot conflicts before they become expensive problems. On an infill site, those few feet next door really matter to the design.

When should construction staking be ordered after the design survey?

Staking usually comes after the design is settled. Once the final site and foundation plans are approved, the surveyor can stake the building position. Ordering it too early risks staking a layout that still changes later. Waiting for approval keeps the field work in sync with the finished plan.
