Land surveying makes the difference between a utility tract that works and one that turns into a problem ten years later. Growing areas need lift stations, water tanks, pump stations, substations and similar facilities. Those often get built long after the surrounding subdivision fills in. The land for them has to be set aside during platting, when there’s still room to choose. Reserving that ground properly means measuring it, describing it and marking it, not just shading a rectangle on a preliminary plan.

Estimating the Land Needed for Future Infrastructure

Sizing a tract requires thinking past the equipment. A facility needs its own footprint plus everything around it that keeps it usable. Planners and engineers usually account for:

• The structure or equipment footprint itself, at full build-out size
• Working clearance around equipment for repair and replacement
• A turnaround large enough for the service vehicles that will come
• Screening, fencing and any landscape buffer the code requires
• Room to expand when the system grows past its first phase

Future capacity is the piece most often underestimated. A lift station sized for the first phase of a development may need a second wet well and a larger generator when the last phase connects. A tract sized exactly to today’s equipment leaves nowhere to put that.

Shape matters as much as area. A long narrow strip may hold the same square footage as a compact rectangle and still fail to fit a building with clearance around it. The surveyor works with the utility provider to get both the area and the geometry right before the tract goes on the plat.

Protecting Permanent Access and Maintenance Areas

Access has to be permanent and it has to be usable. A crew arriving at two in the morning with a vacuum truck needs a driveway that exists, that’s wide enough, and that doesn’t depend on crossing someone’s front yard. The tract either fronts a public street or connects to one through a recorded access easement.

Grades affect access more than people expect. A driveway too steep for a loaded service truck defeats the purpose of the reservation. The surveyor collects elevations across the tract and along the proposed access so the design can be checked before the plat records.

Overhead and underground clearances belong in the same review. A tract sitting under a power line may not have room for a crane. One crossed by an existing pipeline may not have room for a foundation. Locating those constraints early prevents a reserved tract that turns out to be unbuildable.

Fitting the Utility Tract Into the Subdivision Layout

The tract has to work within the neighborhood around it. Placement affects lot values, street layout and drainage, so it gets negotiated during design rather than dropped in at the end. Surveyors and engineers test positions against the road network, the drainage plan and the utility routing.

Location follows function to a point. A lift station has to sit at a low point in the sewer system. A water tank often needs elevation. Those requirements narrow the options, and the survey shows which candidate locations actually meet them.

Neighbor impact deserves real attention. Placing a tract at the end of a cul de sac surrounded by house fronts creates complaints for the life of the subdivision. Tucking it behind a drainage area or against a buffer keeps it functional and less visible. The layout drawing lets a developer see those tradeoffs before committing.

Preparing a Separate Legal Description for the Tract

A reserved tract usually gets conveyed or dedicated separately, which means it needs its own legal description. The surveyor writes a description that closes mathematically and matches the plat exactly. Any disagreement between the two creates a title problem down the road.

Access rights get described alongside. If the tract reaches the street through an easement across a lot, that easement needs its own description and its own depiction on the plat. Describing the tract without describing how to reach it leaves the utility owning land they can’t legally get to.

Review comes before recording. The utility provider, the city attorney and the title company all look at the description and the plat language. Catching a missing call or an unclear access provision at that stage takes an hour. Fixing it after recording takes a corrective instrument and everyone’s signature.

Monumenting the Reserved Property Before Nearby Construction

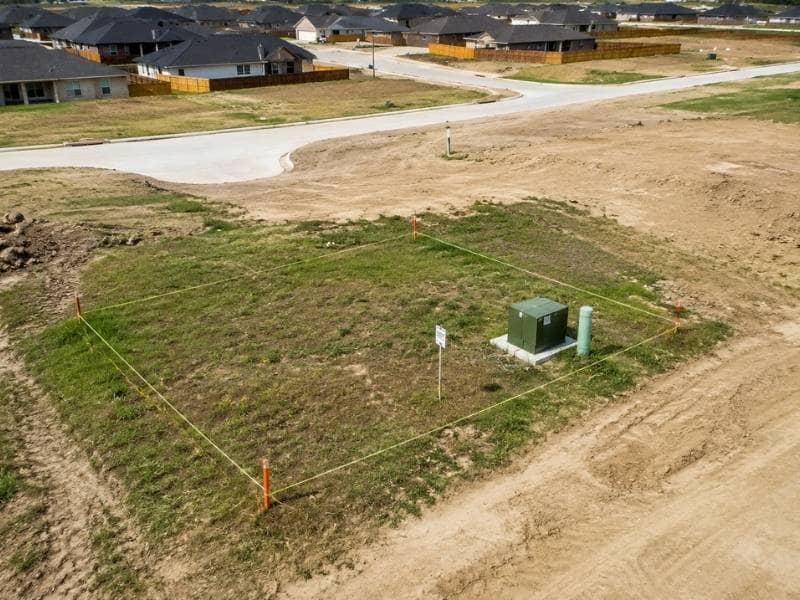

Markers go in before builders arrive. The surveyor sets monuments at each corner of the tract and records their positions. Those markers tell grading contractors, home builders and fence crews exactly where the reserved ground begins.

Encroachment is the risk being managed. Reserved tracts sit empty for years, which makes them look like spare land. Adjacent builders stockpile material on them. Homeowners extend yards into them. Fences go up in the wrong place. Physical corners with visible caps prevent most of that.

Verification before construction closes the loop. When the utility finally builds, a crew rechecks the corners, replaces anything lost during development, and confirms the tract still holds the dimensions the plat promised. Finding a problem at that point is far better than discovering the building pad won’t fit.
